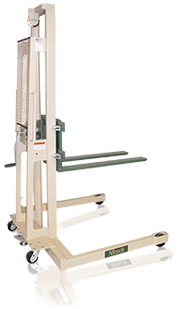

Winch Pallet Stacker
A more economical alternative to our Hydraulic Pallet Stacker, the Winch Pallet Stacker does not sacrifice the outstanding quality and rugged durability all Beech Equipment offers.
Our Winch Pallet Stacker is available in lift heights up to 76" and features an oversize winch for ease of operation.
Get More Information or Request a Quote
Call Now: (800) 726-9491
Winch Pallet Features
- 1000-pound capacity at a 24" load center.
- Lift heights of 56", 66" and 76". Forks reach completely to the floor when lowered.
- Oversized winch for ease of use and years of trouble-free operation.
- Forks are heavy duty 4" wide 1" thick solid steel and adjustable from 8" to 26-½" O.D.
- Galvanized aircraft cable with over 4200 lb. yield.
- Floor lock is standard.
- 2" x 5" load wheels, 2" x 4" steering casters, phenolic wheels with roller bearings and grease fittings are standard.
- Safety shield provides operator with unobstructed vision.
Winch Pallet Specifications
| Model No. | Fork Length | Legs ID | Legs OD | Overall Length | Overall Height | Load Center | Fork Height Range | Machine Weight |
| SS-4266W | 36" | 42" | 50" | 53" | 82" | 24" | 1" - 66" | 428 lb |
| SS-4276W | 36" | 42" | 50" | 53" | 92" | 24" | 1" - 76" | 438 lb |
| SS-5066W | 36" | 50" | 58" | 53" | 82" | 24" | 1" - 66" | 443 lb |
| SS-5076W | 36" | 50" | 58" | 53" | 92" | 24" | 1" - 76" | 448 lb |
Front wheel diameters: 5" x 2" • Rear wheel diameters: 4" x 2"
Forks OD Min: 8" • Forks OD Max:26.5"

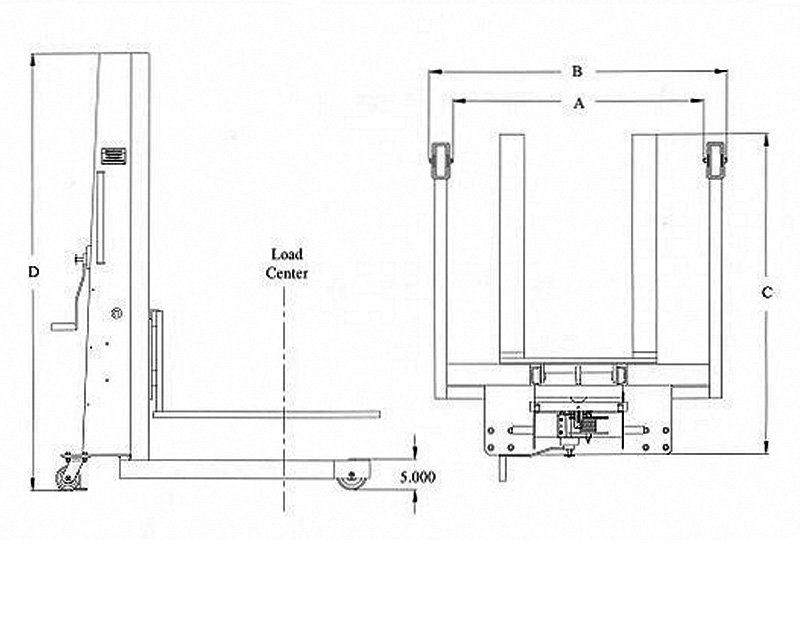

Click image to enlarge.
