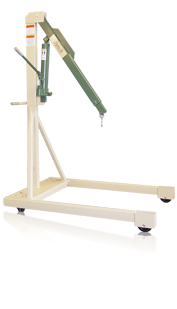

Model B-1000 Straddle Crane
Designed and built to Beech Design & Manufacturing's rigid specifications, the B-1000 Straddle Crane is ideal for smaller loads.
With a lift height of over 100", the lightweight B-1000 outperforms all other cranes in its class.
Get More Information or Request a Quote
Call Now: (800) 726-9491
Model B-1000 Features
- 1000-pound capacity.
- Lift height of over 100" at full capacity.
- Safety Swivel Hook is attached directly to extension boom.
- For ease of movement, oversize roller bearings phenolic 5" diameter x 2" wide load wheels and 4" diameter x 2" wide steering casters are standard.
- Optional wheels available.
- Optional floor lock available.
- Safety by-pass relief valve is standard to prevent dangerous overloading.
- Each machine is factory proof tested to 150% capacity.
- 2-year warranty on entire machine, 5 years on frame weldment.
Model B-1000 Specifications
| Model No. | Pump Type1 |
Machine Weight |
Boom Position2 | Hook Capacity |
Hook Height3 | |
| Min | Max | |||||
| B-1000 | Single Speed Manual |
200lbs | 46 3/8" 52 3/8" 58 1/4" 64 1/4" |
1000lbs. 750 lbs. 450 lbs. 200 lbs. |
30" 25" 20" 15" |
105" |
Click image to enlarge
| Dimensions | ||||
| A | B | C | D | E |
| 28" | 43" | 35 7/8" | 53 1/8" | 71 7/8" |
1 Pump is equipped with internal load relief to protect both load and crane.
2 Measured from the centerline of mast to the centerline of load hook.
3 Add 7” to maximum hook height to assure overhead clearance.
